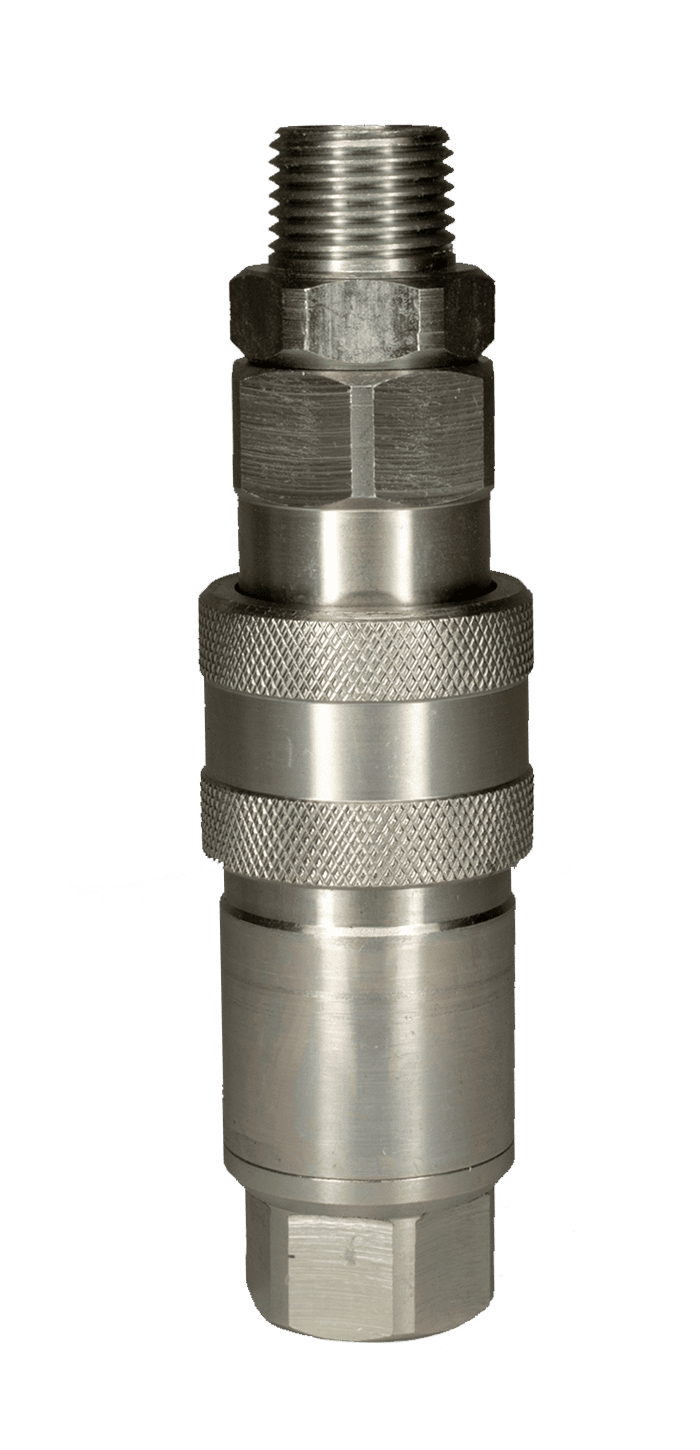

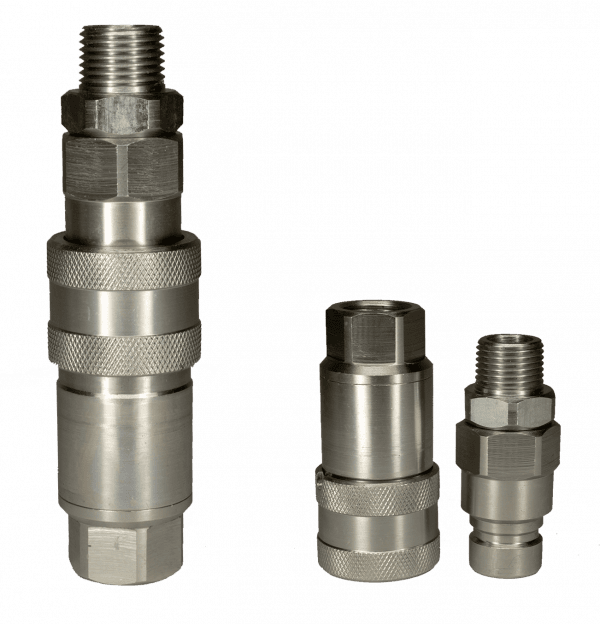

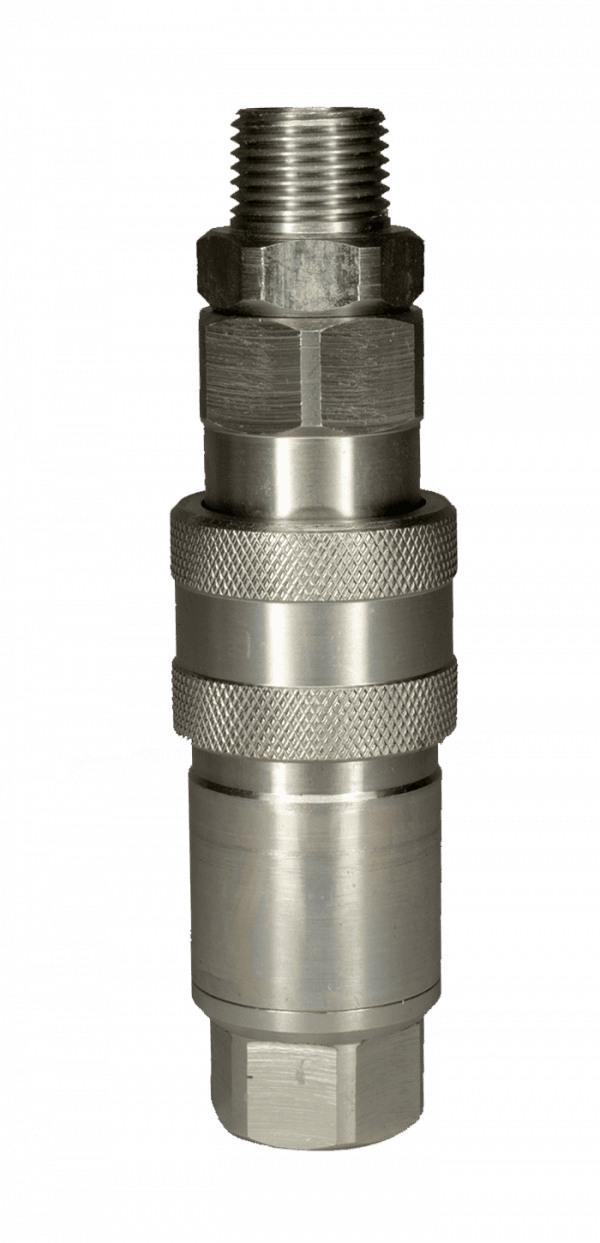

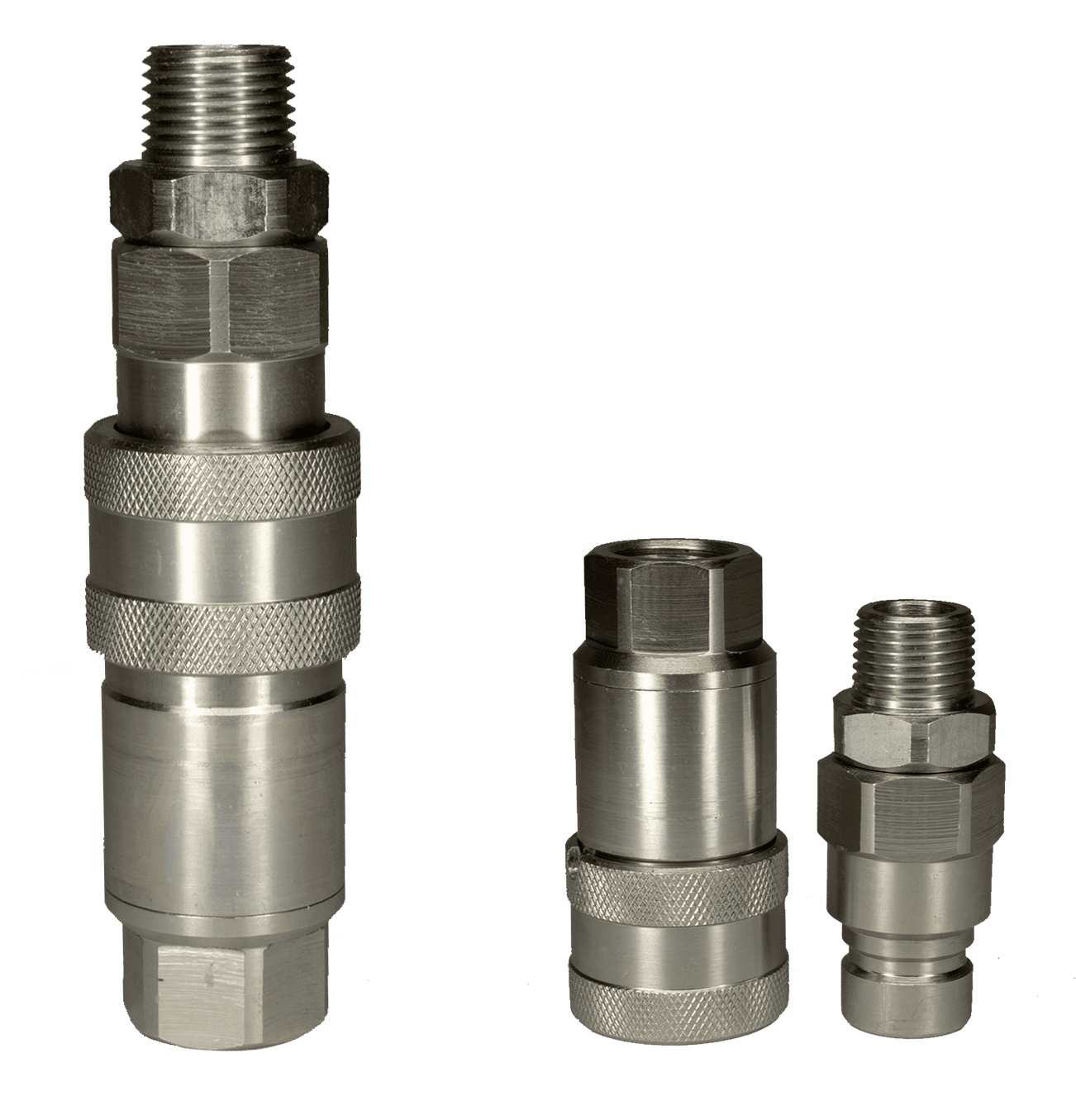

Quick-Connect Fittings (8-HY Series)
Features:
- 8-HY Series Couplings are interchangeable in accordance with ISO 16028. Service pressure up to 3000 PSI.
- Non-spill design ensures no fluid loss or contamination of Hydraulic circuit during connect/disconnect process.
- 8-HY Series couplings are made with Zinc-plated steel.
- SPECIFICATIONS
- APPLICATIONS
- ADDITIONAL INFORMATION
8-HY SERIES ISO 16028 FLAT FACE INTERCHANGEABLE COUPLINGS | |
Description | PART # |

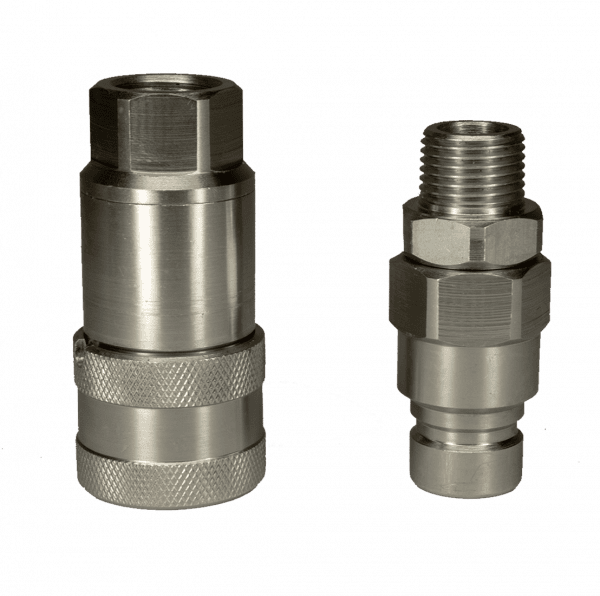

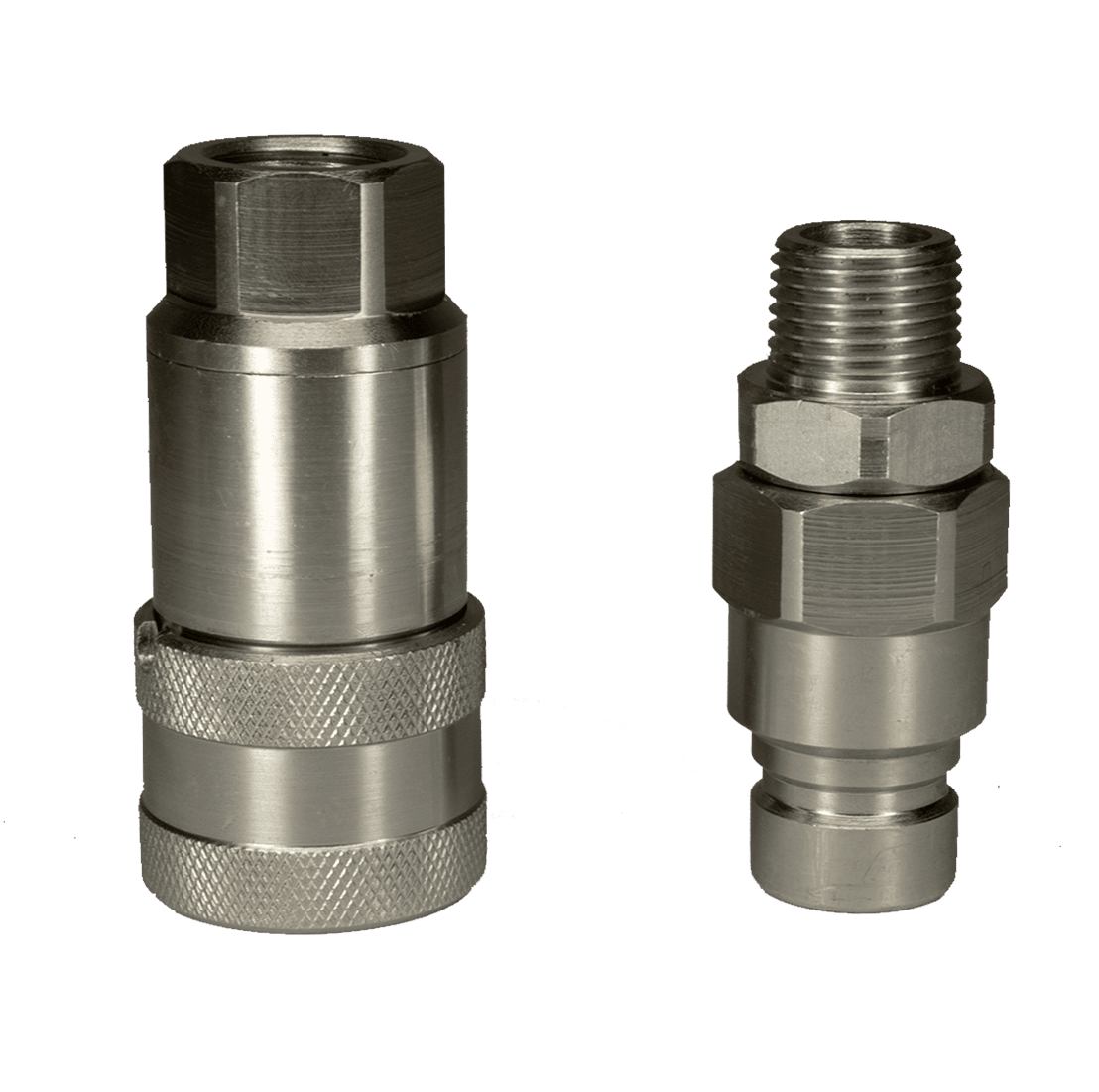

Nipple with 1/2” MNPT connection | 8-HY1/2-MNPT |
Coupler with 1/2” FNPT connection | 8-HY1/2-FNPT |
Applications include Mobile Construction, Agriculture, General Industrial, Mining etc.
