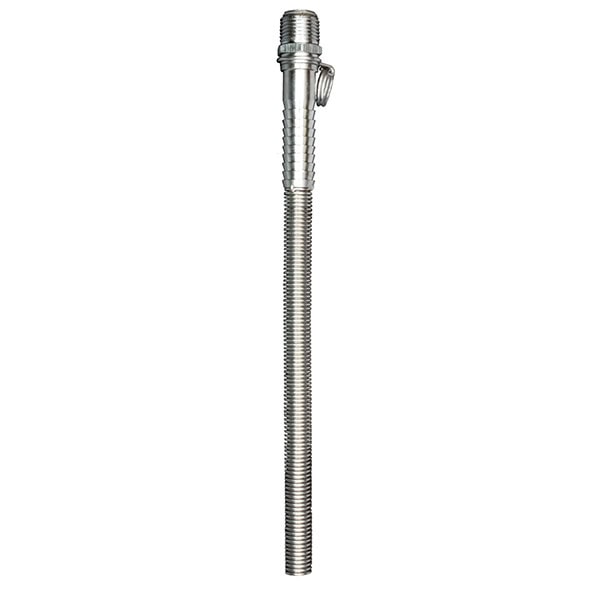

SuperKlean LifeSpan Hose Guards
- SuperKlean LifeSpan Hose Guards ensure hoses meet or exceed their designed life span.
- LifeSpan Hose Guards feature SuperKlean’s unibody lock O-ring fittings that ensure these swivel fittings never come apart.
- SuperKlean LifeSpan Hose Guards include our highly-rated, unique fittings, featuring extra-long 2 1/4” long hose barbs.
- Longer hose barbs allow 2 bands instead of one, ensuring hose assemblies are well secured.
| LIFESPAN™ INTERNAL HOSE GUARDS | |
| Description | PART # |
| 8-5/8-B bronze swivel adapter, w/ 12″ long SS Hose Guard | HG8-5/8-B |
| 8-5/8-S stainless steel swivel adapter, w/ 12″ long SS Hose Guard | HG8-5/8-S |
| 8-3/4-B bronze swivel adapter, w/ 12″ long SS Hose Guard | HG8-3/4-B |
| 8-3/4-S stainless steel swivel adapter, w/ 12″ long SS Hose Guard | HG8-3/4-S |
| 8-FGHT 5/8-B bronze swivel adapter, w/ 12″ long SS Hose Guard | HG8-FGHT 5/8-B |
| 8-FGHT 5/8-S stainless steel swivel adapter, w/ 12″ long SS Hose Guard | HG8-FGHT 5/8-S |
| 8-FGHT 3/4-B bronze swivel adapter, w/ 12″ long SS Hose Guard | HG8-FGHT 3/4-B |
| 8-FGHT 3/4-S stainless steel swivel adapter, w/ 12″ long SS Hose Guard | HG8-FGHT 3/4-S |
| 8LT-5/8-B lite bronze swivel adapter, w/ 12″ long SS Hose Guard (for 150 Lite Series Nozzles Only) | HG8LT-5/8-B |
| 8LT-3/4-B lite bronze swivel adapter, w/ 12″ long SS Hose Guard (for 150 Lite Series Nozzles Only) | HG8LT-3/4-B |
| 8-B5/8-S ball type swivel adapter, w/ 12″ long SS Hose Guard | HG8-B5/8-S |
| 8-B3/4-S ball type swivel adapter, w/ 12″ long SS Hose Guard | HG8-B3/4-S |
| 9-5/8-S 3-piece mixer adapter, w/ 12″ long SS Hose Guard | HG9-5/8-S |
| 9-3/4-S 3-piece mixer adapter, w/ 12″ long SS Hose Guard | HG9-3/4-S |

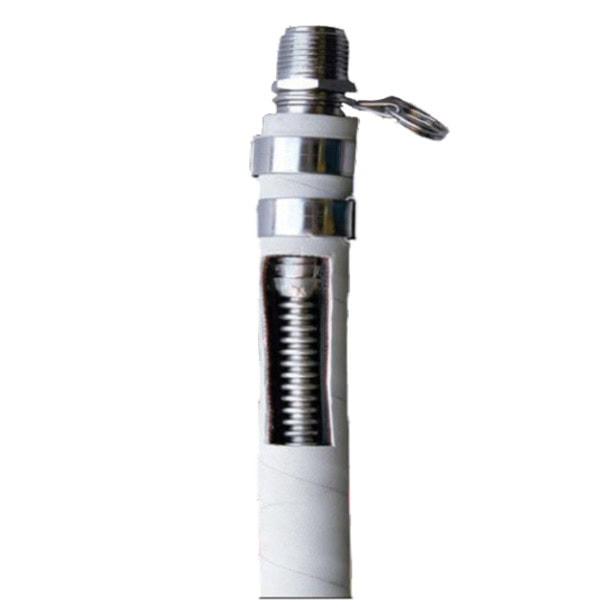

Safety Managers and Plant Managers alike have used our internal hose guard to help their hoses last much longer. You can connect one of our hose barb fittings to the stainless steel tube of the hose guard, so there is virtually no flexing when using our hoses.
It is very common that industrial hoses are assembled using fittings similar to SuperKlean fittings. Under normal use, the inside of a hose constantly rubs against the bottom edges of the hose barb of the fitting, causing the hose to eventually burst at that location. Many washdown applications require the use of high temperature hot water, causing the wear and tear effects to be more pronounced, because hot water causes the hose to soften. Premature hose failure can be costly in terms of replacement and production line down-time.
