Ball Valve Hot & Cold Water Mixers

Ball Valve Hot & Cold Water Mixers
View more Images

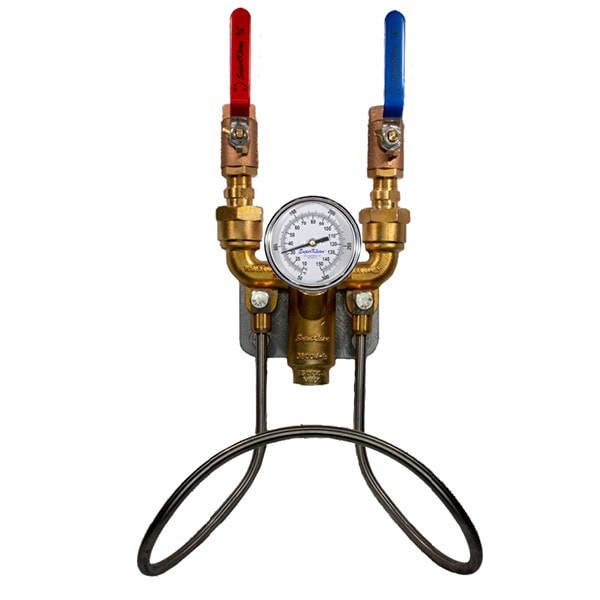

BALL VALVE HOT & COLD WATER MIXING UNIT – 3600BM SERIES

Features:
  • Ball valves for easier shutoff while maintaining its original characteristics.
  • Incorporated Y-style body with check valves and ball joint unions for superior flexibility during installation.
  • Inlet center lines which have the same dimensions as most of our competitors.
  • Includes mounting plate, hose rack, and optional temperature gauge.
Principal Parts & Materials
Inlet / Outlet: 3/4″ NPT Mixer Body: Brass or 300 Series Stainless Steel Ball Valves: Bronze or 300 Series Stainless Steel Hose Rack: 300 Series Stainless Steel Temperature Gauge: (optional) Stainless Steel Weight: 13 Lbs.
Maximum Operative Conditions: Maximum Water Pressure: 150 PSI Maximum Temperature: 200°F (93°C)
SuperKlean now offers a hot & cold water mixing units with ball valves for easier shutoff while maintaining its original characteristics. The unit uses “Y” style body mechanics with lift check valves and ball joint unions for superior flexibility during installation. SuperKlean’s inlet center lines have the same dimensions as most of our competitors’ units. Our units come with a mounting plate for easy behind the unit cleanup, hose rack for easy user access to the hose, and an optional temperature gauge for accurate temperature readings at outlet.

Installation Manual

SuperKlean 3600BM Series Hot & Cold Water Mixing Unit Specification Sheet and Part List


Benefits of SuperKlean Water Mixing Units with Ball Valves

The design and function of this mixing unit helps provide a variety of benefits to the user and the industrial application. These benefits include:

    • Ball joint union lift check valves provide the mixing unit more flexibility during installation.
    • The ball valve design enables the user to turn on and off without any difficulty.
    • The unit includes a stainless steel hose rack which allows easier access to the hose.
    • The entire unit weighs only 13 lbs., making it a lightweight, and easy to handle product.

We can also provide this unit with an optional stainless steel temperature gauge for accurate outlet temperature readings. If you would like to know more about this particular mixing unit, please contact us on our toll-free number 800-769-9173. You can also send us an email at sales@superklean.com.

Get A Quote!

  • Would you like to get some quick pricing, emailed to you within 24 hours? Just click on the quantity you require, click Get Quote, and our team will send you an email back as soon as possible.

  • 1. Personal Information

  • 2. Select Products

  • Ball Valve Hot & Cold Water Mixers

    3600BM.B.T

    Brass, hot & cold water wall mounted mlxer-hose station. Includes ball valves, check valves, hose rack, mounting bracket, and temperature gauge.

    3600BM·B

    Brass, hot & cold water wall mounted mlxer-hose station. Includes ball valves, check valves, hose rack, and mounting bracket.

    3600BM-S

    300 series stainless steel, hot & cold water wall mounted mlxer-hose station. Includes ball valves, check valves, hose rack, and mounting bracket.

    3600BM-S-T

    300 series stainless steel, hot & cold water wall mounted mlxer-hose station. Includes ball valves, check valves, hose rack, mounting bracket, and temperature gauge.
