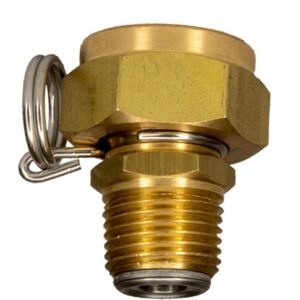

Lite Swivel Adapters
- For 150 ‘Lite’ series nozzles only.
- 360° swivel rotation to prevent hose kinking.
- 2.25″ long hose shank/bark for a safer and more secure installation.
- Lock O-ring, replacing the traditional C-ring, to secure swivel head.
- Built-in lock ring for nozzle lever which minimizes hand fatigue.
SuperKlean’s swivel adapters are designed with a 2.25″ long hose barb for a safer and more secure installation, lock O-rings replacing the traditional C-ring, and a built in lever lock ring which minimizes hand fatigue. The 360° swivel adapters prevent hose kinking.
| LITE SWIVEL ADAPTERS | |
| Description | PART # |
| 3/8″ NPT x 3/4″ FGHT, brass & 304 SS | 8LT-GHT-B |
| 3/8” NPT x 1/2” hose barb, brass & 304 SS | 8LT-1/2-B |
| 3/8” NPT x 5/8” hose barb, brass & 304 SS | 8LT-5/8-B |
| 3/8” NPT x 3/4” hose barb, brass & 304 SS | 8LT-3/4-B |
Renown for the fact that our hose swivel adapters do not leak, all hose adapters feature O-rings after switching from a C-ring design almost two decades ago, supported by the fact that fittings with O-rings last considerably longer and are much less prone to becoming loose and leaking unwelcome water onto factory floors. The extra long 2.25” barbs allow hoses to be double-banded, ensuring a more solid connection between the hose, hose swivel fitting, and nozzle that will not slip or leak over time with heavy usage in production areas. All SuperKlean custom-assembled hoses feature our own standard and ball swivel adapters, with expert double-banding and next day shipments that SuperKlean is famous for.
